Simple CNC desktop router workflow and example

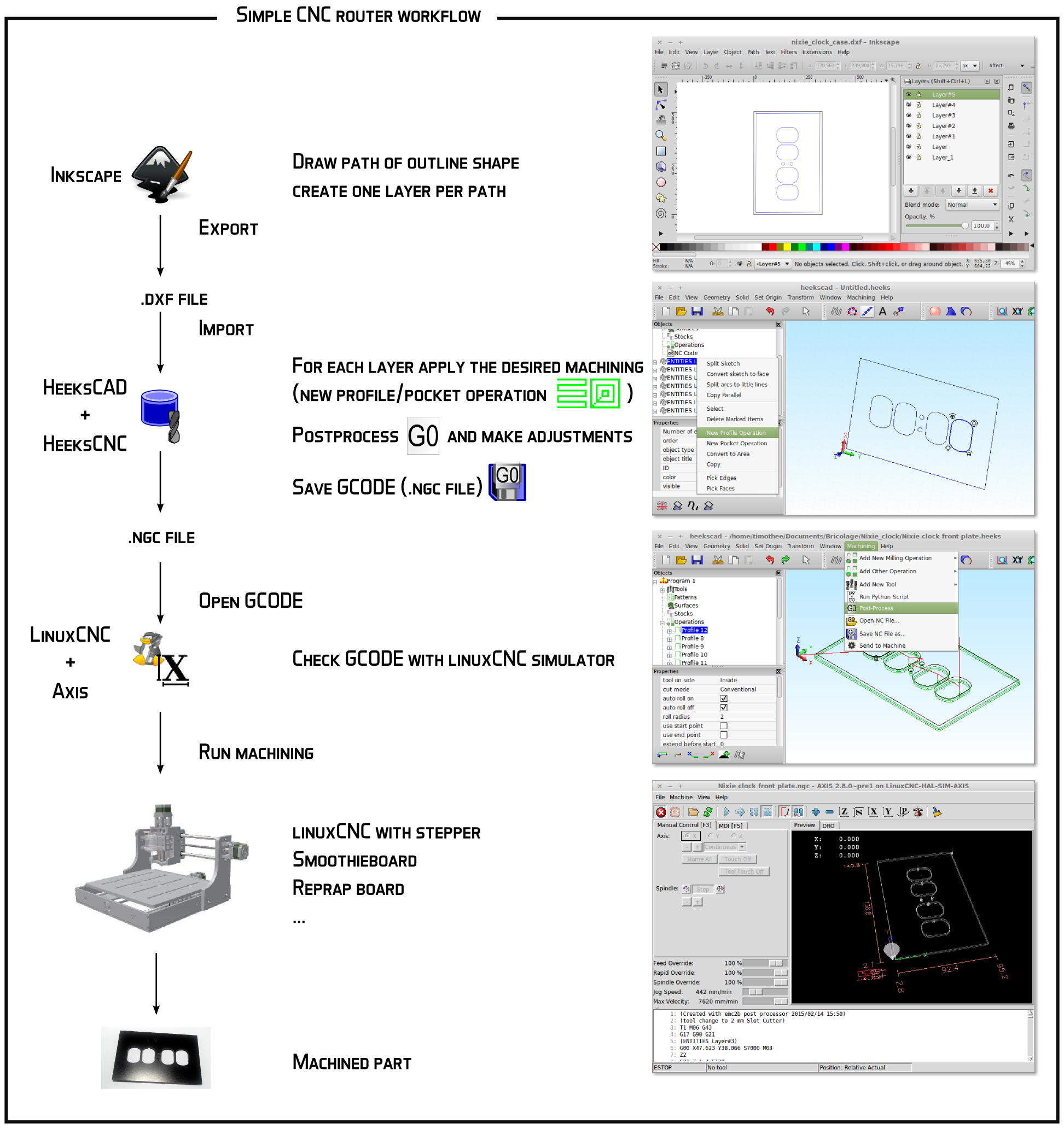

If you have access to a simple desktop mill/router, and you are not into mechanical part design, here is a very simple workflow:



You will only need free/open source program:


In order to illustrate this example, we are going to make a case for a nice Nixie Clock from PV Electronics

A simple Ikea-hack will do for the wooden box: DRAGAN 2-piece bathroom dish set, bamboo

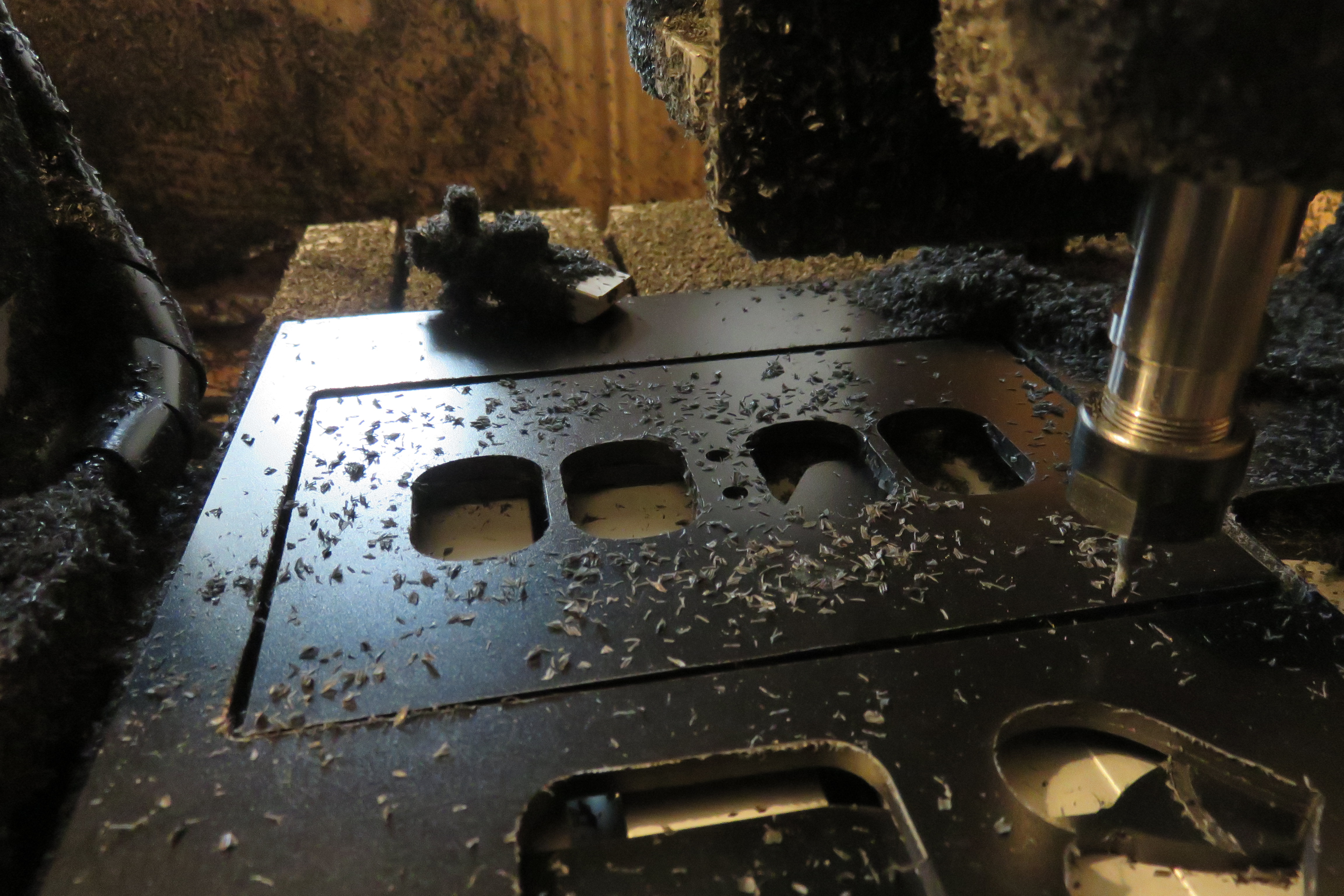

The front panel is milled

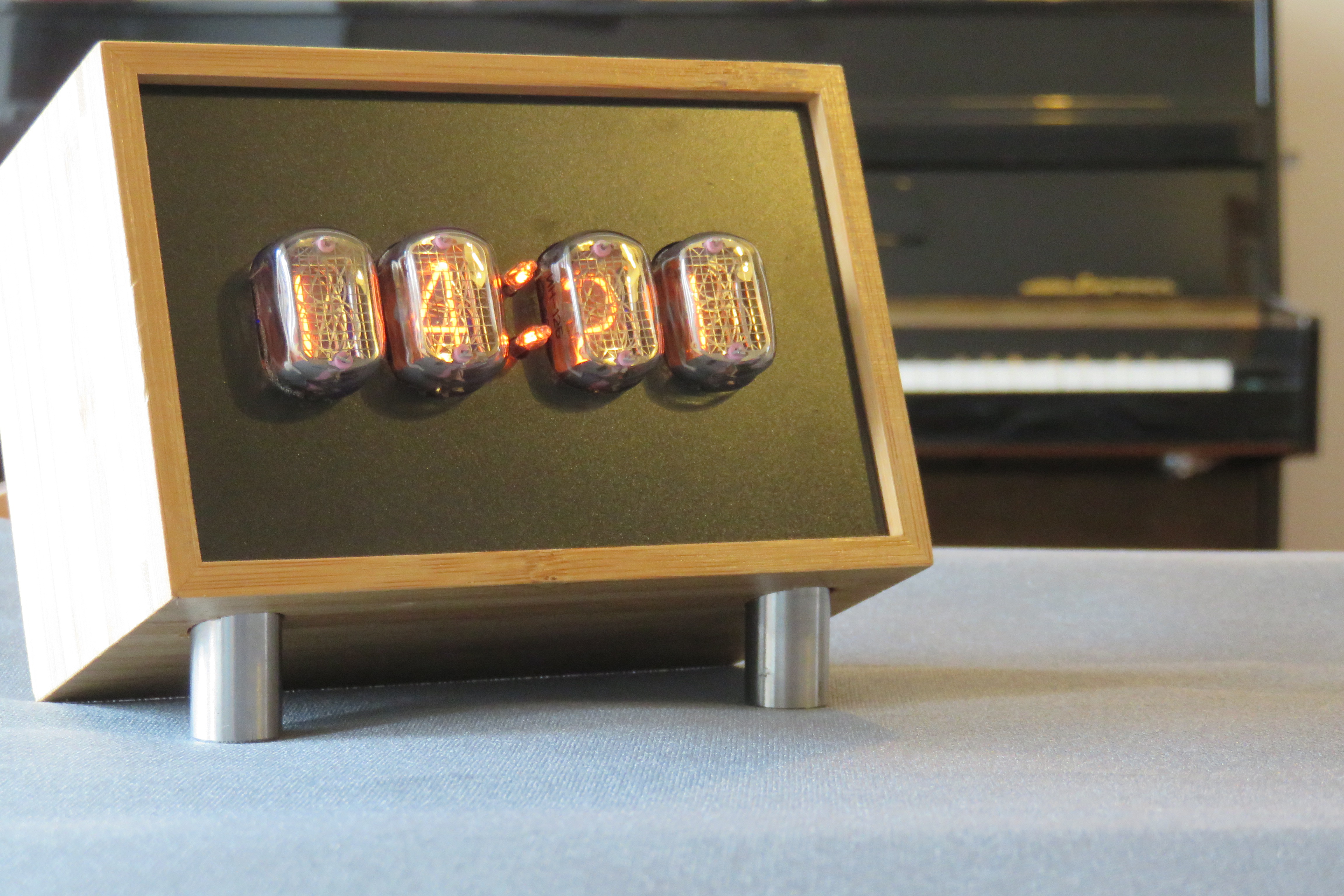

And fitted in place

The 2 stainless steel feet are from Ikea again

Thanks Dan Heeks for the very good software.

Happy milling!

Files are available here.
