XCSoar: generate custom maps


XCSoar is an Open Source software for tactical glide computer: run it on any PDA/Smartphone/eBook and you have a powerfull computer for sailplane, paradlider and hang glider. (see previous post about adding a GPS to an eReader)

Generated map can be downloaded here

The geo file format used by XCSoar are:

  • elevation geotiff raster with altitude encoded (custom format)
  • waypoints
  • airspace
  • any shapefile

We will use the latest to add custom geo referenced information on XCSoar (in this case, paragliding skyways from thermal.kk7)

Software requirement

 Processing files

#remove and create temp folder for file processing
rm -rf tmp/; mkdir tmp/
#convert PNG+PGW to GeoTiff and resize for faster processing (resize to any % or none)
gdal_translate ./skyways_all.png tmp/skyways_all.tif -outsize 50% 50%
#vectorize contour to shapefile red layer
gdal_contour tmp/skyways_all.tif tmp/skyways_all_r.shp -i 50 -b 1
#vectorize contour to shapefile green layer
gdal_contour tmp/skyways_all.tif tmp/skyways_all_g.shp -i 80 -b 2
#vectorize contour to shapefile blue layer
gdal_contour tmp/skyways_all.tif tmp/skyways_all_b.shp -i 200 -b 3


Visualisation with QGIS

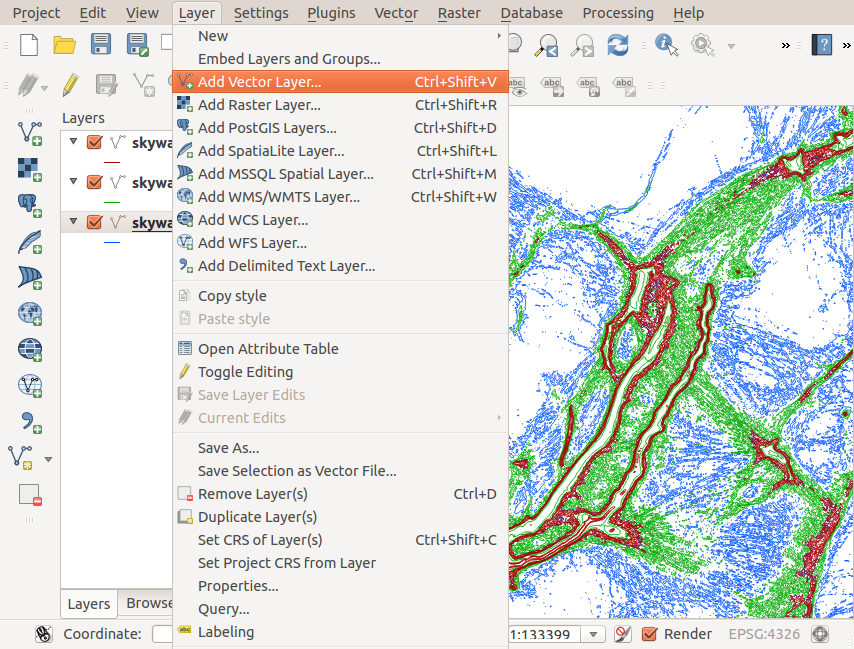

Import from Layer->Add Vector Layer and select your 3 files

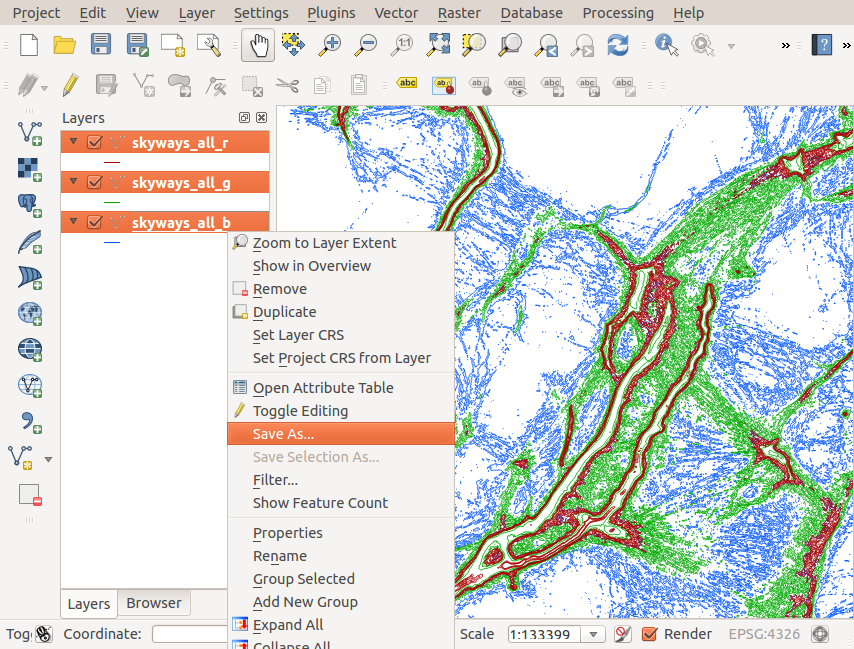

Then if everything is fine, save the 3 as Shapefiles:

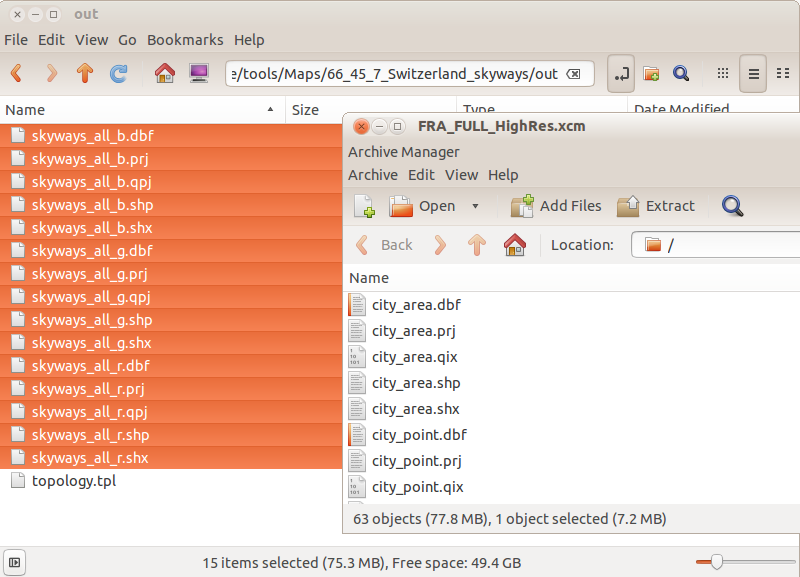

Place the generated file into the XCM (XCSoar compressed archive map)

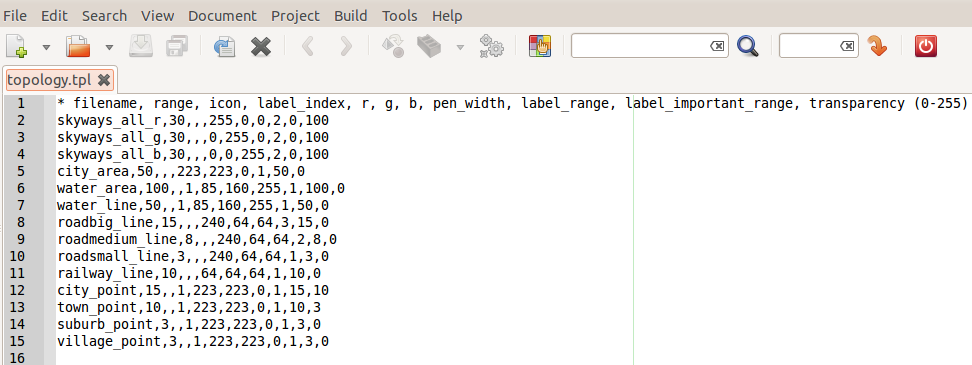

Dont forget to edit the topology.tpl to add the names of the new files:

You can edit color (RGB, 0-255)  and transparency (0-255)

The order is important: element are displayed from top to bottom (first to last)

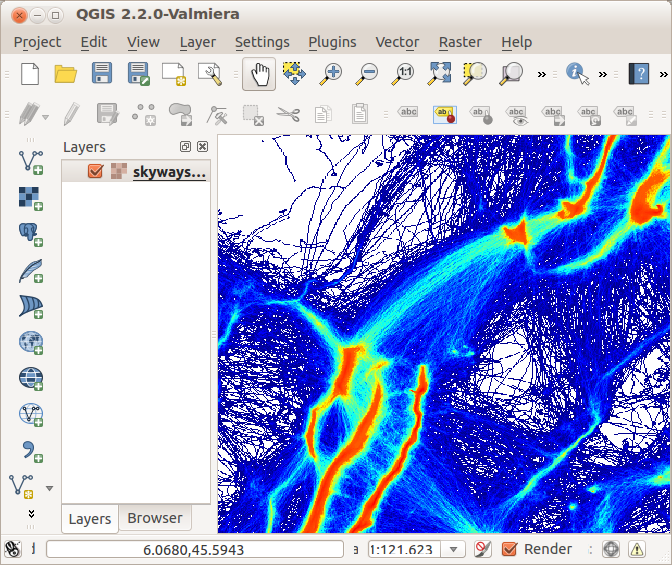

Original raster file, PNG + PGW format.

Generated shapefile maps in XCSoar (desktop version)

Same in XCSoar but eReader version optimised for black and white gray levels.

Generated map can be downloaded here
